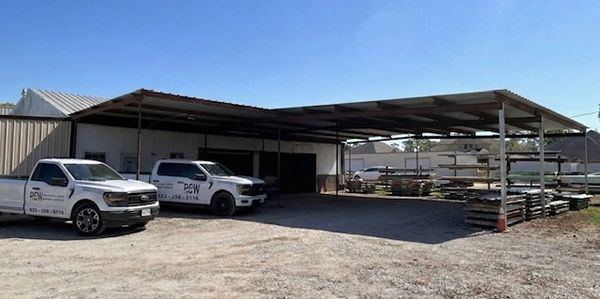

About RCW Metal Building
For more than 20 years, RCW AND FABRICATION has served as a dependable local fabrication company in Cypress, Houston, Austin, Corpus Christi, San Antonio, and other locations, delivering high-quality residential, commercial, and industrial fabrication services as a locally owned and operated business.
Our Mission
At RCW AND FABRICATION, our mission is to provide high-quality metal materials for all your construction needs. We specialize in aluminum, cast iron, stainless steel, and more to ensure durability and reliability in every project.
METAL BUILDING PANELS
All of the metal building components are manufactured from a 26 gauge siliconized, polyester-coated, galvanized or galvalume steel. DESCRIPTION: Prime’s PBR & R panels provide 36” coverage and are a durable, cost-efficient roofing and/or wall systems. The purlin bearing leg, which is the only difference between the PBR & R panel, is designed to provide a more consistent panel alignment and fastener engagement. Available in our standard 26 gauge, the PBR & R panels are low-maintenance, impact-re
CHARCOAL
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
LIGHTSTONE
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
HAWAIIAN BLUE
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
TAN
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
COCOA BROWN
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
EMERALD GREEN
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
POLAR WHITE
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.

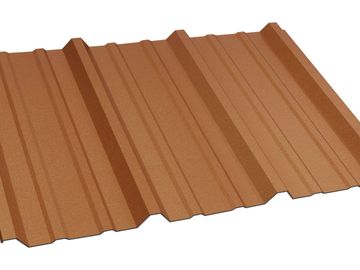

COPPER PENNY
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.

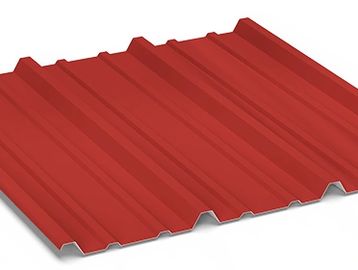

CRIMSON RED
APPLICATION: Roofs, Walls, Fascias, Soffits COVERAGE WIDTHS: 36” RIB SPACING: 12” centers RIB HEIGHT: 1 ¼” GAUGES: 26 (standard) LENGTH: Custom cut to order.
Fasteners
Agrega una descripción de esta categoría

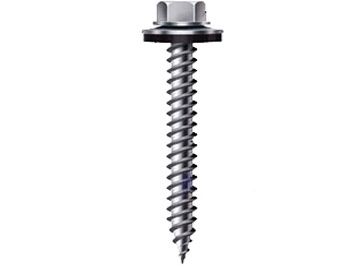

Woodgrip Screws Bag
$40.00
Woodgrip Screws are used to attach metal panel to wood framing. 250 screws per bag.
Lap-Tek Screws Bag
$40.00
Precision cold-forged assuring superior point strength & fast drilling time performance through high strength steel & nested purlins. Lap-Tek Screws are used to stitch two panels together at the overlap. 250 screws per bag.
METAL BUILDING COMPONENTS
Zee Purlins
Zee-profiles are made to nest inside one another, making them ideal to span long buildings where the zee-profiles are overlapped and joined over the building's frame. Because the lapped joints add significant strength to the roof, zee-profiles are the preferred shape for large or industrial buildings.
Cee Purlins
The small profile of a cee-purlin makes it ideal when the width of the structural component is important, for example, when close to eaves.. The center of gravity is in the center of the shape making cee-purlins easier to work with as they balance on their short side without assistance. They are the preferred shape for carports and simple structures.
Purlin Clips
C Purlins are a component of the metal ceiling framework that sustain the weight of the gypsum or acoustic board by serving as either a wall angle or metal furring.

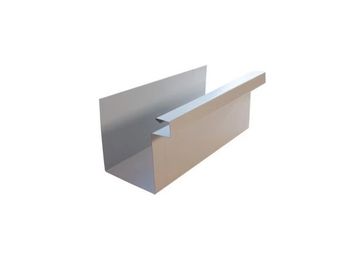

Standard Gutter
Used to control the flow of water off the roof.
Drip Edge
A drip edge is simply a metal flashing installed under the roofing materials to help regulate water flow from the fascia and protect any underlying roofing materials. It contains a small metal flange that directs water away from the fascia. It also overhangs the sides of your roof.
Base Trim
Custom trim capabilities up to 32’ lengths
Door Head Trim
Custom trim capabilities up to 32’ lengths
Door Track Cover
Custom trim capabilities up to 32’ lengths
Drip Edge
Custom trim capabilities up to 32’ lengths
Downspout
Connect to gutter to control the flow of water.
Peak Sheet
Custom trim capabilities up to 32’ lengths
Flat Ridge Cap
Custom trim capabilities up to 32’ lengths

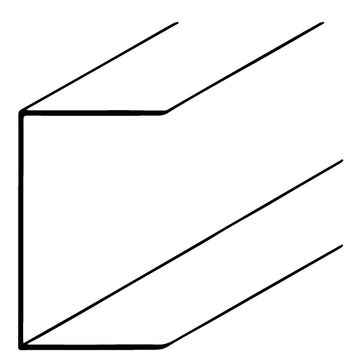

Receiving Channel/ Open Face
Receiving Channel is used to receive purlins or girts at the ends of the building structure. They are 1/8 inch taller than the cee or zee profile, so the end of the profile will slip in perpendicular to the channel. The top and bottom of the profile are bolted to the flanges of the receiving channel.
Receiving channel is typically used in carports and low strain applications.

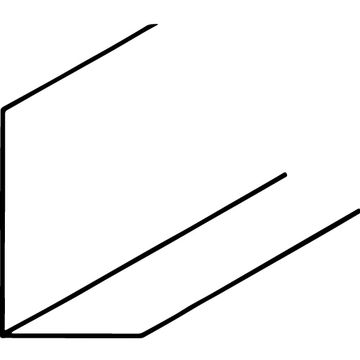

Base Angle or Rake Angle
Base-angles are attached to the base of the structure with the long side up. This creates a solid structure where the bottom of the wall can be anchored to the building and ground.
Eave Strut
Eave Struts are used at the top of a building frame. They are the attachment point for the top of the wall and the roof. They are angled to match the pitch of the roof.
